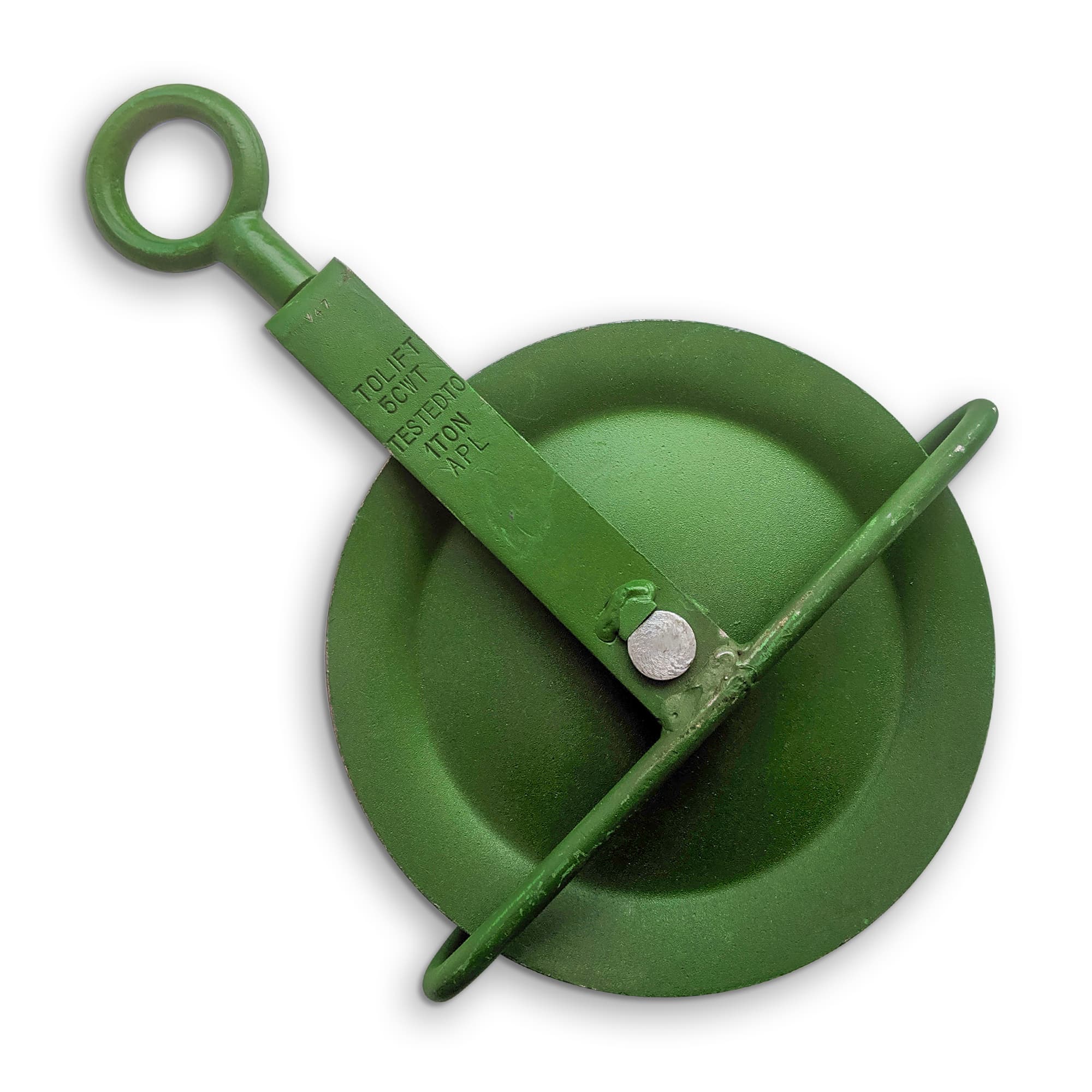

10 Inch Gin Block with Round Eye
£51.99 inc. VAT
In Stock| Quantity | Price |
|---|---|
| 5 - 10 | £49.39 |
| 10 - 20 | £46.79 |
| 20 - 30 | £44.19 |
| 30 - 100 | £41.59 |

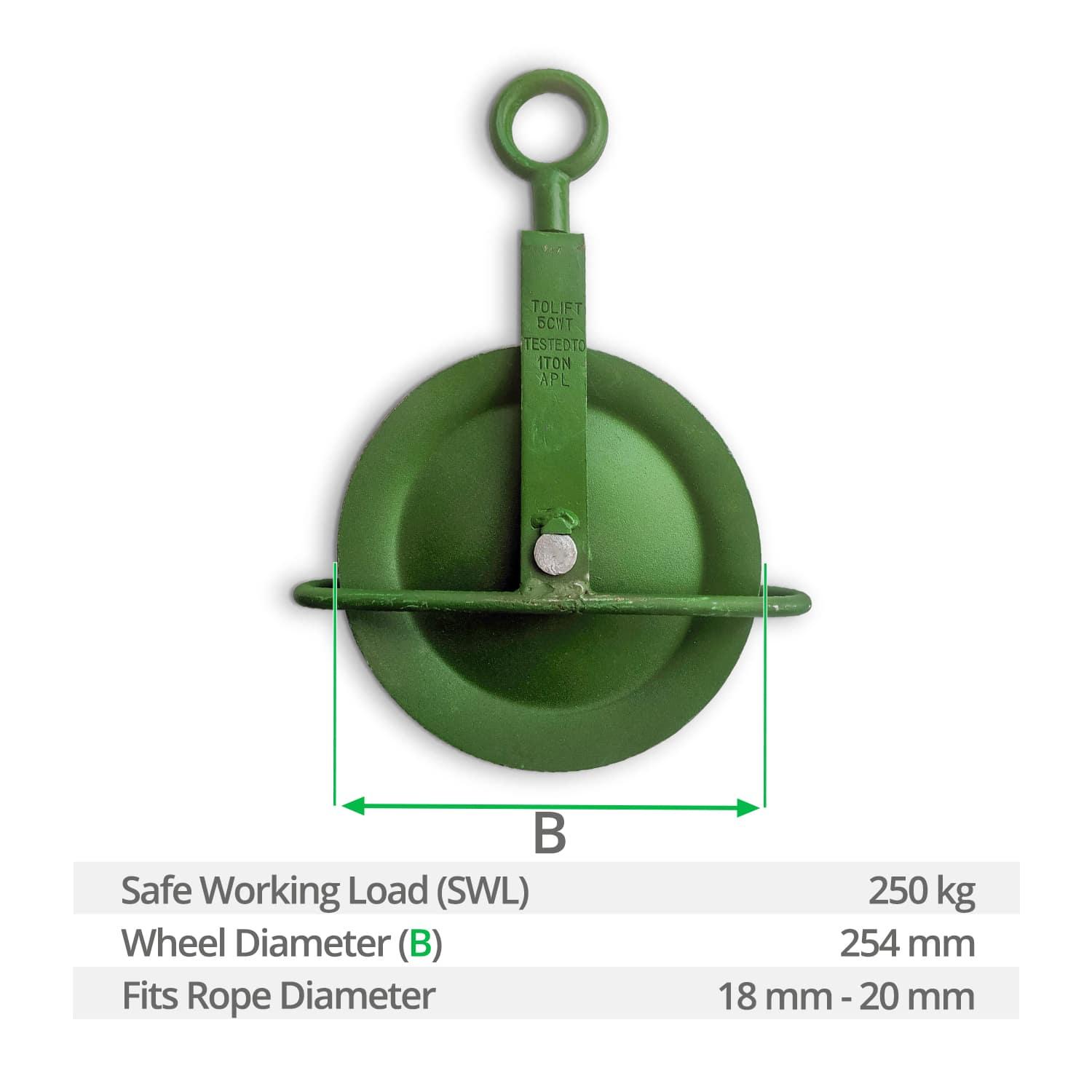

Measurements
| Fits Rope Diameter | 18mm-20mm |
|---|---|
| Wheel Diameter (B) | 254mm |
Strength & Environment
| Suited to Indoor Use | No |
|---|---|
| Suited to Outdoor Use | Yes |
| Corrosion Resistant | Yes |
| UV Resistant | Yes |
| Can Withstand Salt Water | No |
| Safe Working Load (SWL) | 250kg |
| Pulley Block Standard | Yes – conforms to BS 1692:1998 |
Applications
| Non-Critical Lifting | Yes |
|---|---|
| Overhead Lifting | Yes |
| Reduce Lifting Effort | Yes |
| Non Critical Rigging | Yes |
| Critical Applications | No |
| Winching | Yes |
| Construction Site Pulley | Yes |
| Washing Line Pulley | Yes |
Installation
| Tools Required | None |
|---|---|
| Accessories Required | None |
| Attach to Rope | Rope threads through the pulley |
| Ease of Use | Easy |
| Attach to Scaffolding | Scaffold fits through eye |
Look & Feel
| Handling | Hard & smooth |
|---|---|
| Colour | Green |
Construction
| Material | Green Painted |
|---|---|
| Finish | N/A |
