Decking Rope Eye Plate

End Plate to connect a rope with a hook end to a post or wall.  Often used with barrier rope, decking rope or stair bannister rope.

Installation

  • Simply screw into place (screws not provided)
  • Use a wall plug if installing on to brick/wall



Related: Decking Rope, Decking Fittings

Full product details

Sort By:
View:
  • £6.99 inc. VAT

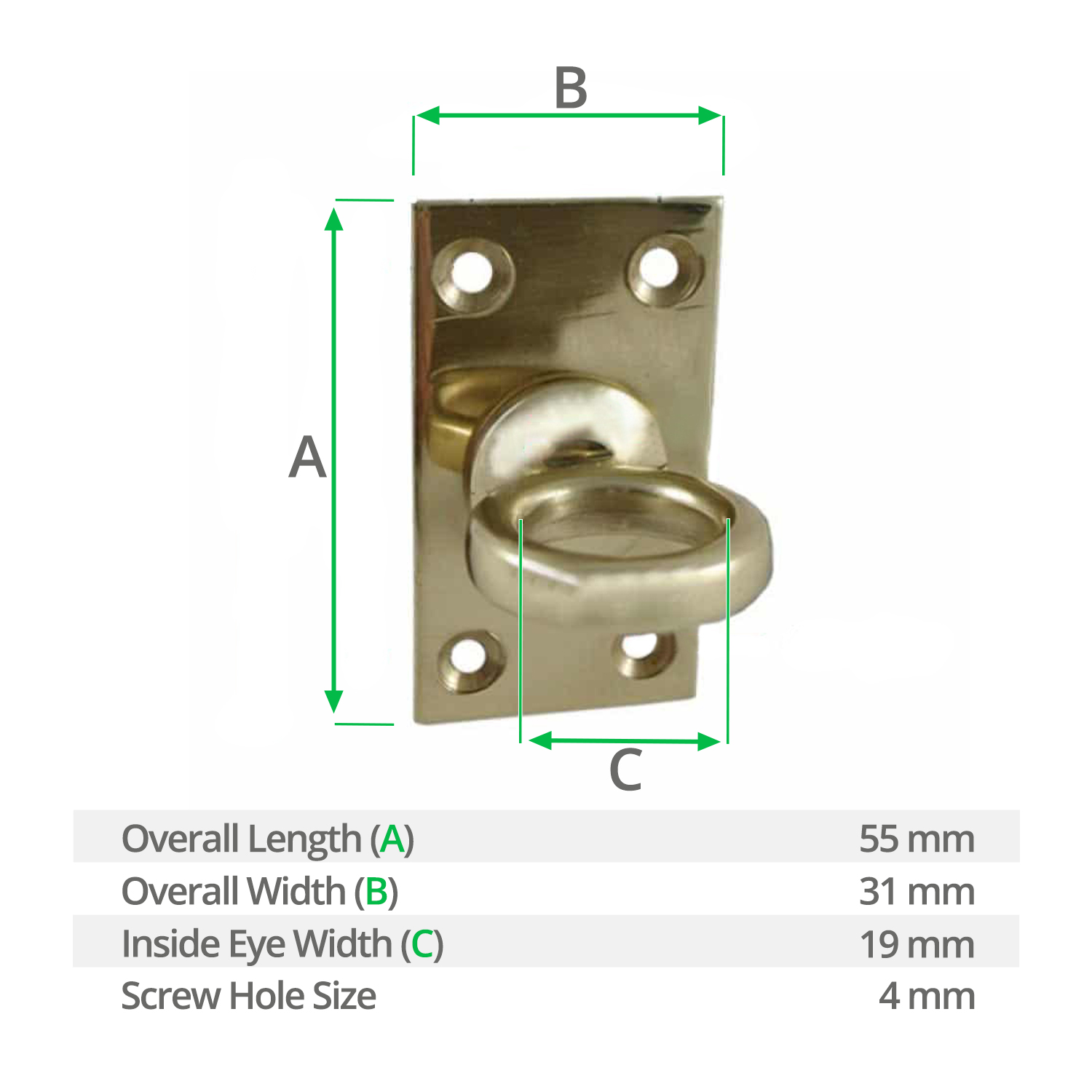

    Overall Length (A) : 55mm
    Overall Width (B) : 31mm
    Inside Eye Width (C) : 19mm
    Screw Hole Size : 4mm
    Material : Brass
    Finish : Polished
    Hook Eye Plate Quantity : x1
    Screw Quantity : x4
    Wall Plug : Not included
    Suited to Outdoors : Yes
    Suited to Indoors : Yes
    Decking : Yes
    Garden Landscaping : Yes
    Stair Handrail : No
    Barriers : Yes
    Crowd Control : Yes
    Load Bearing : No
    Colour : Brass
    Handling : Hard & smooth
    Tools Required : Drill & Screwdriver
    Accessories Required : Wall plugs
    Attach to Rope : Internal screw secures rope to the bracket
    Attach to Wall : x4 screws (included)
  • £6.99 inc. VAT

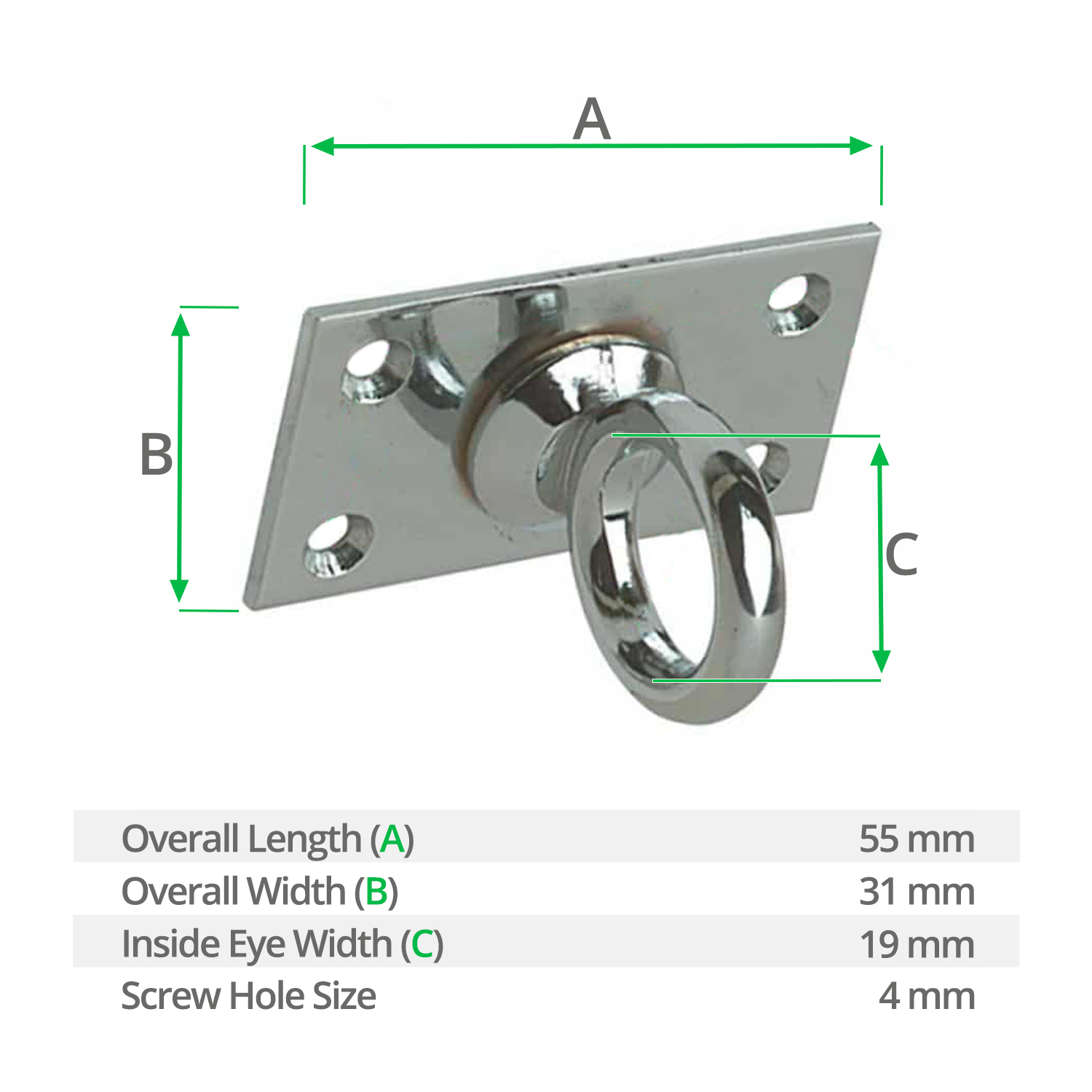

    Overall Length (A) : 55mm
    Overall Width (B) : 31mm
    Inside Eye Width (C) : 19mm
    Screw Hole Size : 4mm
    Material : Chrome plated brass
    Finish : Polished
    Hook Eye Plate Quantity : x1
    Screw Quantity : x4
    Wall Plug : Not included
    Suited to Outdoors : Yes
    Suited to Indoors : Yes
    Decking : Yes
    Garden Landscaping : Yes
    Stair Handrail : No
    Barriers : Yes
    Crowd Control : Yes
    Load Bearing : No
    Colour : Chrome
    Handling : Hard & smooth
    Tools Required : Drill & Screwdriver
    Accessories Required : Wall plugs
    Attach to Rope : Internal screw secures rope to the bracket
    Attach to Wall : x4 screws (included)
