Galvanised Green Screw Pin Shackle | Buy Rope

Hot-dip galvanised steel shackle
Safe working load up to 55 tonnes (tested and certified)
Corrosion-resistant
Removable green pin
Meets performance requirements of US Federal PR-C-271
Conforms to EN 13889 standards

0.33 Tonnes Green Screw Pin Shackle

£3.89 inc. VAT

0.33 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 0.33 tonnes

Overall Length (A) : 41mm

Bow Diameter (B) : 5mm

Inside Height (C) : 22mm

Jaw Opening (D) : 9.5mm

Safe Working Load Tested : Yes - conforms to US Standard RR C 271

Shackle : x1

Overhead Lifting : Yes

Critical Applications : Yes

Non-Critical Lifting : Yes

Winching : Yes

Lift Heavy Loads : Yes

Connect Ropes to Objects : Yes

Non Critical Rigging : Yes

Ease of Use : Easy

Tools Required : None

Accessories Required : None

Attach to Rope : Rope threads through the shackle or attach via eye splice

Colour : Silver with green pin

Handling : Hard & smooth

Suited to Indoor Use : Yes

Suited to Outdoor Use : Yes

Corrosion Resistant : Yes

UV Resistant : Yes

Can Withstand Salt Water : No
0.50 Tonnes Green Screw Pin Shackle

£5.19 inc. VAT

0.50 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 0.5 tonnes

Overall Length (A) : 54mm

Bow Diameter (B) : 7mm

Inside Height (C) : 29mm

Jaw Opening (D) : 12mm

Safe Working Load Tested : Yes - conforms to US Standard RR C 272

Shackle : x1

Overhead Lifting : Yes

Critical Applications : Yes

Non-Critical Lifting : Yes

Winching : Yes

Lift Heavy Loads : Yes

Connect Ropes to Objects : Yes

Non Critical Rigging : Yes

Ease of Use : Easy

Tools Required : None

Accessories Required : None

Attach to Rope : Rope threads through the shackle or attach via eye splice

Colour : Silver with green pin

Handling : Hard & smooth

Suited to Indoor Use : Yes

Suited to Outdoor Use : Yes

Corrosion Resistant : Yes

UV Resistant : Yes

Can Withstand Salt Water : No
0.75 Tonnes Green Screw Pin Shackle

£5.49 inc. VAT

0.75 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 0.75 tonnes

Overall Length (A) : 61mm

Bow Diameter (B) : 9mm

Inside Height (C) : 32mm

Jaw Opening (D) : 13.5mm

Safe Working Load Tested : Yes - conforms to US Standard RR C 273

Shackle : x1

Overhead Lifting : Yes

Critical Applications : Yes

Non-Critical Lifting : Yes

Winching : Yes

Lift Heavy Loads : Yes

Connect Ropes to Objects : Yes

Non Critical Rigging : Yes

Ease of Use : Easy

Tools Required : None

Accessories Required : None

Attach to Rope : Rope threads through the shackle or attach via eye splice

Colour : Silver with green pin

Handling : Hard & smooth

Suited to Indoor Use : Yes

Suited to Outdoor Use : Yes

Corrosion Resistant : Yes

UV Resistant : Yes

Can Withstand Salt Water : No

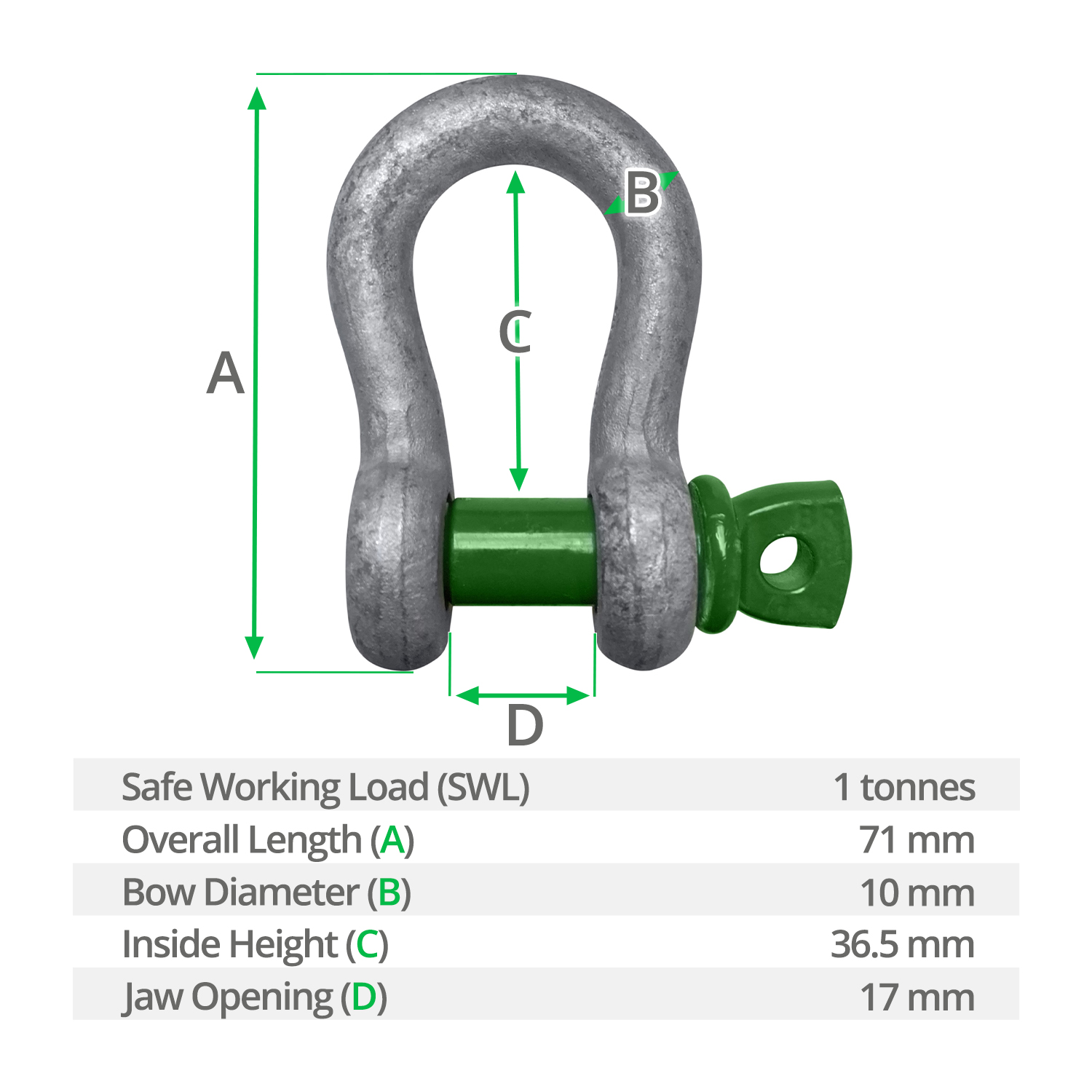

1 Tonnes Green Screw Pin Shackle

£6.19 inc. VAT

1 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 1 tonnes

Overall Length (A) : 71mm

Bow Diameter (B) : 10mm

Inside Height (C) : 36.5mm

Jaw Opening (D) : 17mm

Safe Working Load Tested : Yes - conforms to US Standard RR C 274

Shackle : x1

Overhead Lifting : Yes

Critical Applications : Yes

Non-Critical Lifting : Yes

Winching : Yes

Lift Heavy Loads : Yes

Connect Ropes to Objects : Yes

Non Critical Rigging : Yes

Ease of Use : Easy

Tools Required : None

Accessories Required : None

Attach to Rope : Rope threads through the shackle or attach via eye splice

Colour : Silver with green pin

Handling : Hard & smooth

Suited to Indoor Use : Yes

Suited to Outdoor Use : Yes

Corrosion Resistant : Yes

UV Resistant : Yes

Can Withstand Salt Water : No
1.5 Tonnes Green Screw Pin Shackle

£8.09 inc. VAT

1.5 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 1.5 tonnes

Overall Length (A) : 80mm

Bow Diameter (B) : 11mm

Inside Height (C) : 43mm

Jaw Opening (D) : 19mm

Safe Working Load Tested : Yes - conforms to US Standard RR C 275

Shackle : x1

Overhead Lifting : Yes

Critical Applications : Yes

Non-Critical Lifting : Yes

Winching : Yes

Lift Heavy Loads : Yes

Connect Ropes to Objects : Yes

Non Critical Rigging : Yes

Ease of Use : Easy

Tools Required : None

Accessories Required : None

Attach to Rope : Rope threads through the shackle or attach via eye splice

Colour : Silver with green pin

Handling : Hard & smooth

Suited to Indoor Use : Yes

Suited to Outdoor Use : Yes

Corrosion Resistant : Yes

UV Resistant : Yes

Can Withstand Salt Water : No
2 Tonnes Green Screw Pin Shackle

£11.29 inc. VAT

2 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 2 tonnes

Overall Length (A) : 91mm

Bow Diameter (B) : 13.5mm

Inside Height (C) : 51mm

Jaw Opening (D) : 22mm

Safe Working Load Tested : Yes - conforms to US Standard RR C 276

Shackle : x1

Overhead Lifting : Yes

Critical Applications : Yes

Non-Critical Lifting : Yes

Winching : Yes

Lift Heavy Loads : Yes

Connect Ropes to Objects : Yes

Non Critical Rigging : Yes

Ease of Use : Easy

Tools Required : None

Accessories Required : None

Attach to Rope : Rope threads through the shackle or attach via eye splice

Colour : Silver with green pin

Handling : Hard & smooth

Suited to Indoor Use : Yes

Suited to Outdoor Use : Yes

Corrosion Resistant : Yes

UV Resistant : Yes

Can Withstand Salt Water : No
3.25 Tonnes Green Screw Pin Shackle

£13.79 inc. VAT

3.25 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 3.25 tonnes

Overall Length (A) : 114mm

Bow Diameter (B) : 16mm

Inside Height (C) : 64mm

Jaw Opening (D) : 27mm

Safe Working Load Tested : Yes - conforms to US Standard RR C 277

Shackle : x1

Overhead Lifting : Yes

Critical Applications : Yes

Non-Critical Lifting : Yes

Winching : Yes

Lift Heavy Loads : Yes

Connect Ropes to Objects : Yes

Non Critical Rigging : Yes

Ease of Use : Easy

Tools Required : None

Accessories Required : None

Attach to Rope : Rope threads through the shackle or attach via eye splice

Colour : Silver with green pin

Handling : Hard & smooth

Suited to Indoor Use : Yes

Suited to Outdoor Use : Yes

Corrosion Resistant : Yes

UV Resistant : Yes

Can Withstand Salt Water : No
4.75 Tonnes Green Screw Pin Shackle

£18.49 inc. VAT

4.75 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 4.75 tonnes

Bow Diameter (A) : 19mm

Overall Height (B) : 136mm

Inside Height (C) : 76mm

Jaw Opening (D) : 31mm

Colour : Silver with green pin

Used For : Creates a semi permanent connection between two items.
6.5 Tonnes Green Screw Pin Shackle

£30.79 inc. VAT

6.5 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 6.5 tonnes

Overall Length (A) : 157mm

Bow Diameter (B) : 22mm

Inside Height (C) : 83mm

Jaw Opening (D) : 36mm

Safe Working Load Tested : Yes - conforms to US Standard RR C 279

Shackle : x1

Overhead Lifting : Yes

Critical Applications : Yes

Non-Critical Lifting : Yes

Winching : Yes

Lift Heavy Loads : Yes

Connect Ropes to Objects : Yes

Non Critical Rigging : Yes

Ease of Use : Easy

Tools Required : None

Accessories Required : None

Attach to Rope : Rope threads through the shackle or attach via eye splice

Colour : Silver with green pin

Handling : Hard & smooth

Suited to Indoor Use : Yes

Suited to Outdoor Use : Yes

Corrosion Resistant : Yes

UV Resistant : Yes

Can Withstand Salt Water : No
8.5 Tonnes Green Screw Pin Shackle

£46.99 inc. VAT

8.5 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 8.5 tonnes

Bow Diameter (A) : 25mm

Overall Height (B) : 176mm

Inside Height (C) : 95mm

Jaw Opening (D) : 43mm

Colour : Silver with green pin

Used For : Creates a semi permanent connection between two items.
9.5 Tonnes Green Screw Pin Shackle

£63.49 inc. VAT

9.5 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 9.5 tonnes

Bow Diameter (A) : 28mm

Overall Height (B) : 197mm

Inside Height (C) : 108mm

Jaw Opening (D) : 47mm

Colour : Silver with green pin

Used For : Creates a semi permanent connection between two items.
12 Tonnes Green Screw Pin Shackle

£87.79 inc. VAT

12 Tonnes Green Screw Pin Shackle quantity

Add to basket

Material : Hot dip galvanised steel

Safe Working Load (SWL) : 12 tonnes

Bow Diameter (A) : 32mm

Overall Height (B) : 218mm

Inside Height (C) : 115mm

Jaw Opening (D) : 51mm

Colour : Silver with green pin

Used For : Creates a semi permanent connection between two items.
